Advanced concepts
Where it is
Section titled “Where it is”Setup tree: Advanced concepts
Controls
Section titled “Controls”The generator found no control in this panel with a label it could read from the source. See the summary in manual/03-reference/panels/README.md.
Lists this panel shows
Section titled “Lists this panel shows”Read straight from the data behind the panel, not from a hand-written list.

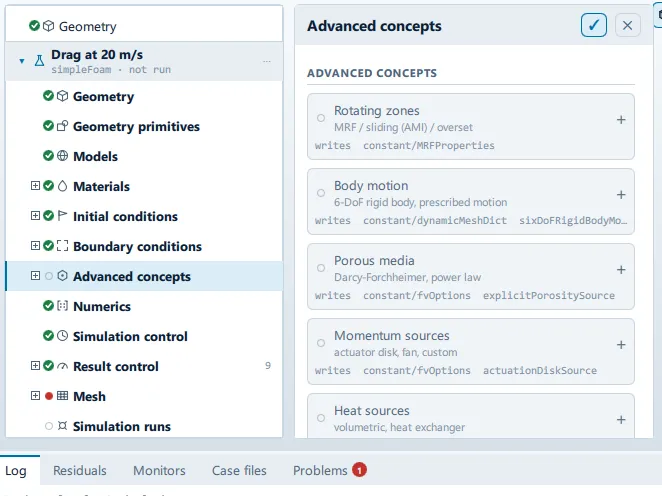

Advanced concepts
Section titled “Advanced concepts”From CaseState.advancedCategories.
| name | detail | writes |
|---|---|---|
| Rotating zones | MRF / sliding (AMI) / overset | constant/MRFProperties |
| Body motion | 6-DoF rigid body, prescribed motion | constant/dynamicMeshDict sixDoFRigidBodyMotion |
| Porous media | Darcy-Forchheimer, power law | constant/fvOptions explicitPorositySource |
| Momentum sources | actuator disk, fan, custom | constant/fvOptions actuationDiskSource |
| Heat sources | volumetric, heat exchanger | constant/fvOptions semiImplicitSource |
| Stabilisation | limitVelocity, limitTemperature | constant/fvOptions limit* |
Problems reported against this step
Section titled “Problems reported against this step”The application checks these before a run and reports them in the Problems tab against this step.
| Severity | Message |
|---|---|
| error | Cell zones and multi-region cases are not part of the … tier. Remove them, or upgrade. |
| error | The mesh moves, so the case cannot be solved steady-state - a steady solver never updates the mesh. Set the time dependency to Transient. |
| error | Overset is enabled, but OpenFOAM has no overset build of …. Remove the overset zone or choose an analysis type that has one. |
… marks a value the application computes at run time, so the source carries no fixed text for it.
