Geometry primitives

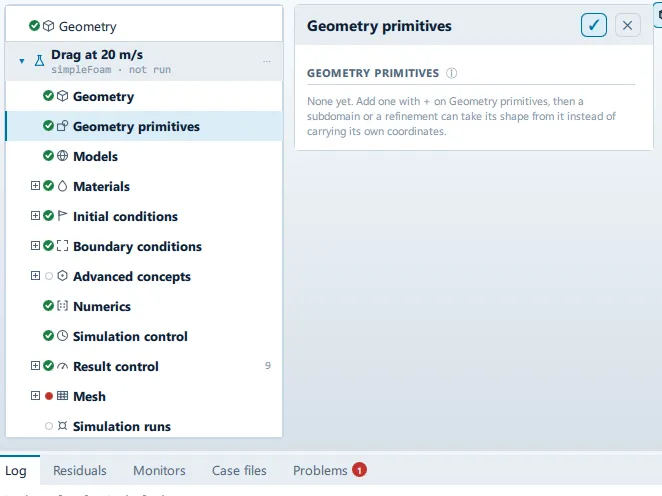

The Geometry primitives panel open beside the setup tree, and its controls.

Where it is

Section titled “Where it is”

Setup tree: Geometry primitives

Controls

Section titled “Controls”

Ungrouped

Section titled “Ungrouped”

Name

Section titled “Name”
  • Control: value (ValueField)
  • Bound to: CaseState.geometryPrimitives
  • Shown when: root.selected >= 0

Type

Section titled “Type”
  • Control: choice (ComboRow)
  • Bound to: CaseState.geometryPrimitives
  • Options: Cartesian box, Sphere, Cylinder, Point (from CaseState.primitiveKinds)
  • Shown when: root.selected >= 0

Axis

Section titled “Axis”
  • Control: choice (ComboRow)
  • Bound to: CaseState.geometryPrimitives
  • Options: x, y, z
  • Shown when: root.selected >= 0 && root.kindOf === "Cylinder"

Which way the height runs.

Delete this primitive

Section titled “Delete this primitive”

Label changes with the case; the source gives these forms: Delete this primitive, Delete anyway - something points at it.

  • Control: action (ToolButton2)
  • Shown when: root.selected >= 0

Problems reported against this step

Section titled “Problems reported against this step”

The application reports no problems against this step.
