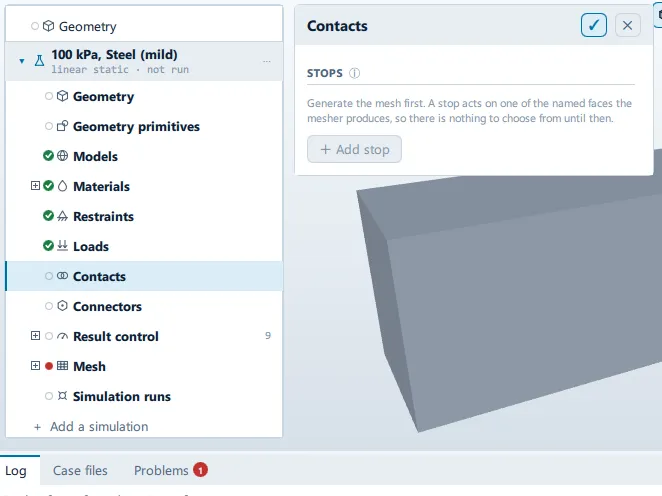

Contacts
Where it is
Section titled “Where it is”Setup tree: Contacts
Controls
Section titled “Controls”＋ Add stop
Section titled “＋ Add stop”- Control: action (
ToolButton2)
Conditional and repeated groups
Section titled “Conditional and repeated groups”Per item in StructuralState.stops
Section titled “Per item in StructuralState.stops”repeated once for every entry in StructuralState.stops
- Control: choice (
ComboRow)
Remove
Section titled “Remove”- Control: action (
ToolButton2)
Direction
Section titled “Direction”- Control: choice (
ComboRow) - Options:
X,Y,Z
The face
Section titled “The face”- Control: choice (
ComboRow) - Options:
may not go below,may not go above
Travel
Section titled “Travel”- Control: value (
ValueField) - Unit: m
- Value modes:
constant
Problems reported against this step
Section titled “Problems reported against this step”The application reports no problems against this step.
… marks a value the application computes at run time, so the source carries no fixed text for it.
