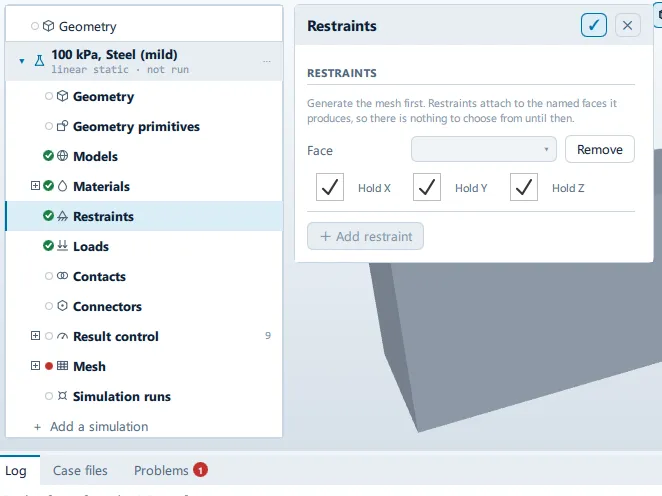

Restraints
Where it is
Section titled “Where it is”Setup tree: Restraints
Controls
Section titled “Controls”RESTRAINTS
Section titled “RESTRAINTS”＋ Add restraint
Section titled “＋ Add restraint”- Control: action (
ToolButton2)
Conditional and repeated groups
Section titled “Conditional and repeated groups”Per item in StructuralState.restraints
Section titled “Per item in StructuralState.restraints”repeated once for every entry in StructuralState.restraints
Label changes with the case; the source gives these forms: Face, Group.
- Control: choice (
ComboRow)
Remove
Section titled “Remove”- Control: action (
ToolButton2)
Lists this panel shows
Section titled “Lists this panel shows”Read straight from the data behind the panel, not from a hand-written list.
RESTRAINTS
Section titled “RESTRAINTS”From a fixed list in the application.
- fixX — X
- fixY — Y
- fixZ — Z
Problems reported against this step
Section titled “Problems reported against this step”The application reports no problems against this step.
… marks a value the application computes at run time, so the source carries no fixed text for it.
