Loads

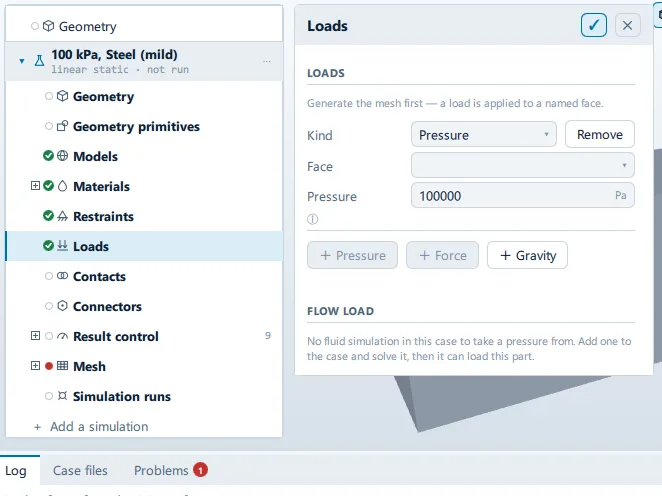

Where it is
Section titled “Where it is”Setup tree: Loads
Controls
Section titled “Controls”＋ Pressure
Section titled “＋ Pressure”- Control: action (
ToolButton2) - Shown when:
StructuralJob.meshKind !== "beam"
＋ Force
Section titled “＋ Force”- Control: action (
ToolButton2)
＋ Gravity
Section titled “＋ Gravity”- Control: action (
ToolButton2)
FLOW LOAD
Section titled “FLOW LOAD”From simulation
Section titled “From simulation”- Control: choice (
ComboRow) - Options: ``
Its patch
Section titled “Its patch”- Control: choice (
ComboRow) - Shown when:
StructuralState.flowSource !== ""
Onto face
Section titled “Onto face”- Control: choice (
ComboRow) - Shown when:
StructuralState.flowSource !== ""
Fluid density
Section titled “Fluid density”- Control: value (
ValueField) - Unit: kg/m³
- Value modes: none (plain entry)
- Shown when:
StructuralState.flowSource !== ""
Only used if the run wrote kinematic pressure (p/rho). Water is about 1000, seawater 1025, air 1.2.
Mapping limit
Section titled “Mapping limit”- Control: value (
ValueField) - Unit: m
- Value modes: none (plain entry)
- Shown when:
StructuralState.flowSource !== ""
Refuse the run if a loaded face is further than this from any CFD face. Zero accepts whatever is nearest. Set it against the FLUID mesh spacing, not against zero.
Conditional and repeated groups
Section titled “Conditional and repeated groups”Per item in StructuralState.loads
Section titled “Per item in StructuralState.loads”repeated once for every entry in StructuralState.loads
- Control: choice (
ComboRow) - Options:
Pressure,Force,Gravity
Remove
Section titled “Remove”- Control: action (
ToolButton2)
Label changes with the case; the source gives these forms: Face, Group.
- Control: choice (
ComboRow) - Shown when:
!isGravity
Acceleration
Section titled “Acceleration”- Control: value (
ValueField) - Value modes: none (plain entry)
- Control: value (
ValueField) - Value modes: none (plain entry)
- Control: value (
ValueField) - Value modes: none (plain entry)
- Control: value (
ValueField) - Value modes: none (plain entry)
Problems reported against this step
Section titled “Problems reported against this step”The application reports no problems against this step.
